Even the smallest object can cause large expenses for your facility. Our Foreign Object Search and Retrieval (FOSAR) tools enables you to locate and remove loose parts, foreign material, debris and other objects that should not be there, from deep inside your industrial system to allow you to stay on schedule and avoid costly tear down.

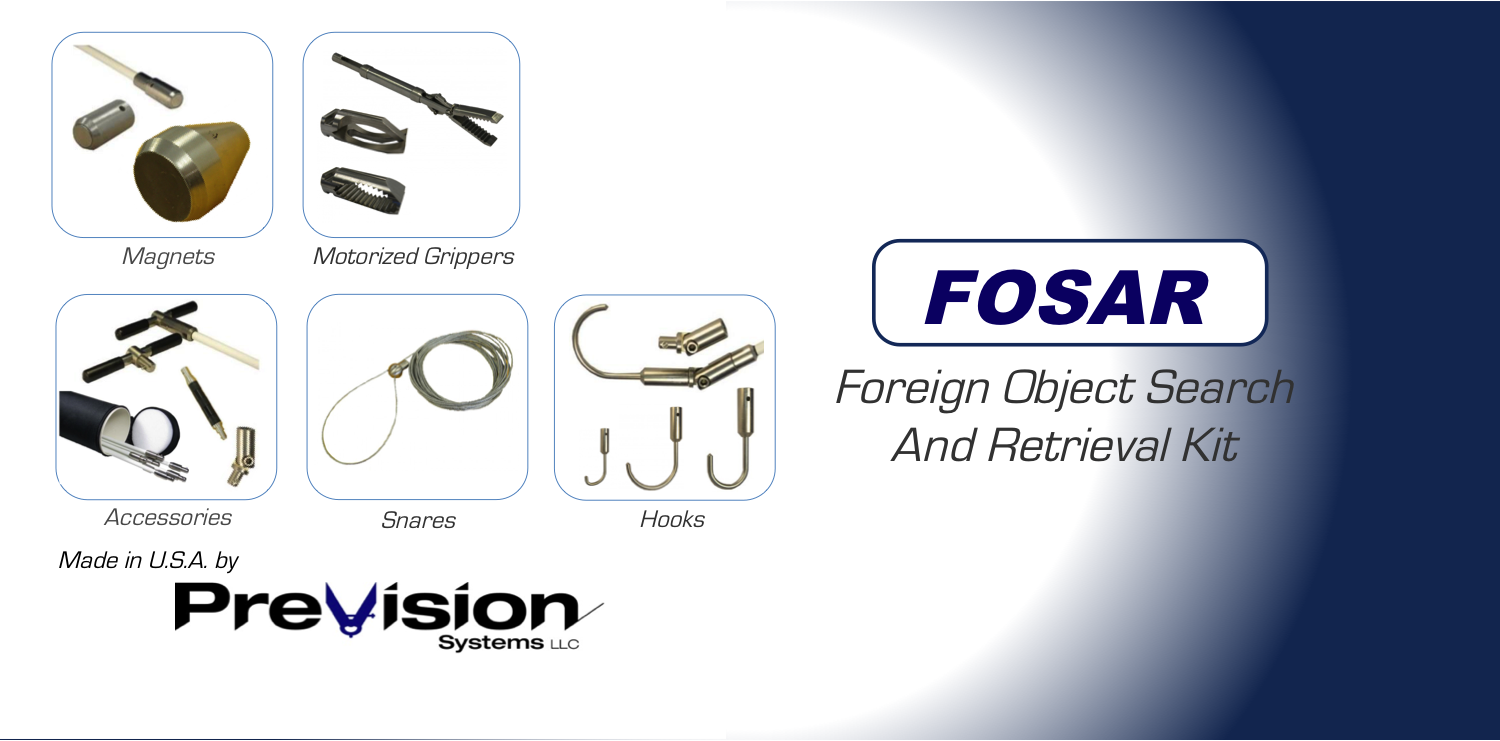

Our complete retrieval tool kit include magnets, snares, hooks, grippers and accessories which enables you to navigate, extend and reach into the deepest recesses for efficient and clean retrieval. They are ideal for hazardous environment and confined space. The tools are modular for portability and ease of configuring to specific requirements.
Fail Safe Construction
All tools are constructed using high strength stainless steel to ensure they hold up to the toughest industrial environment. They are fully submersible to enable retrieval underwater.
Wide Variety of Tools
Each foreign object retrieval presents its own challenge. There are eleven different tools to select from in the kit to meet different retrieval requirements.
Modular with Universal Connectors
Each of the tools and accessories in the tool kit is modular with universal connectors. This allows you to mix, match and configure the tool best suited for the specific retrieval job.
-
Motorised Remote Gripper Kit with Changeable Jaws
Fork/Tine, Serrated Flat, Serrated Curved Jaw Sets; Jaws open to 2.5″ (6.35 cm)
Waterproof to 100′ (30m)
50′ (15m) Main Cable plus 50′ (15m) Extension Cable
Battery-operated Control Box (9 x AA size batteries)
Universal socket quick-disconnect fitting fits all poles and accessories
Fork and Tine Ja
w Set
Includes one fork jaw and one tine jaw with fastening screws and hex key
Stainless Steel Construction
Flat Serrated Jaw Set
Includes one pair of jaws with fastening screws and hex key
Stainless Steel Construction
Curve
Serrated Jaw Set
Includes one pair of jaws with fastening screws and hex key
Stainless Steel Construction
Small Retrieval Magnet
8 lbf (35 N) optimal lift
High-power rare-earth magnet mounted in a durable, stainless steel housing for retrieving iron, steel and some stainless steel foreign objects. Universal socket quick-disconnect fitting fits all poles and accessories
0.69″ (17.5 mm) Diameter
Large Retrieval Magnet
30 lbf (133 N) optimal lift
High-power rare-earth magnet mounted in a durable, stainless steel housing for retrieving iron, steel and some stainless steel foreign objects. Universal socket quick-disconnect fitting fits all poles and accessories
1.25″ (32 mm) Diameter
Hook, J Type
Stainless Steel with pointed tip
1.0″ (25.4 mm) Hook Opening; 0.5″ (12.7 mm) Hook Depth; 1.9″ (48.3 mm) Hook Length
Universal socket quick-disconnect fitting fits all poles and accessories
Hook, U Type Small
Stainless Steel with pointed tip
1.0″ (25.4 mm) Hook Opening; 0.6″ (15.2 mm) Hook Depth; 1.7″ (43.2 mm) Hook Length
Universal socket quick-disconnect fitting fits all poles and accessories
Hook, U Type Long
1.0″ (25.4 mm) Hook Opening; 1.0″ (25.4 mm) Hook Depth; 1.7″ (43.2 mm) Hook Length
Universal socket quick-disconnect fitting fits all poles and accessories
Hook, U Type Large
Stainless Steel with pointed tip
2.0″ (50.8 mm) Hook Opening; 1.0″ (25.4 mm) Hook Depth; 2.2″ (55.9 mm) Hook Length
Universal socket quick-disconnect fitting fits all poles and accessories
Small Retrieval Snare
0.75″ (19 mm) Stainless steel ball with 1/16″ (1.6 mm) diameter wire rope 50′ (15 m) long to ensnare foreign objects
Universal socket quick-disconnect fitting fits all poles and accessories
Large Retrieval Snare
1.0″ (25.4 mm) Stainless steel ball with 3/32″ (2.4 mm) diameter wire rope 50′ (15 m) long to ensnare foreign objects
Universal socket quick-disconnect fitting fits all poles and accessories
